Digital IOs

Version: develop

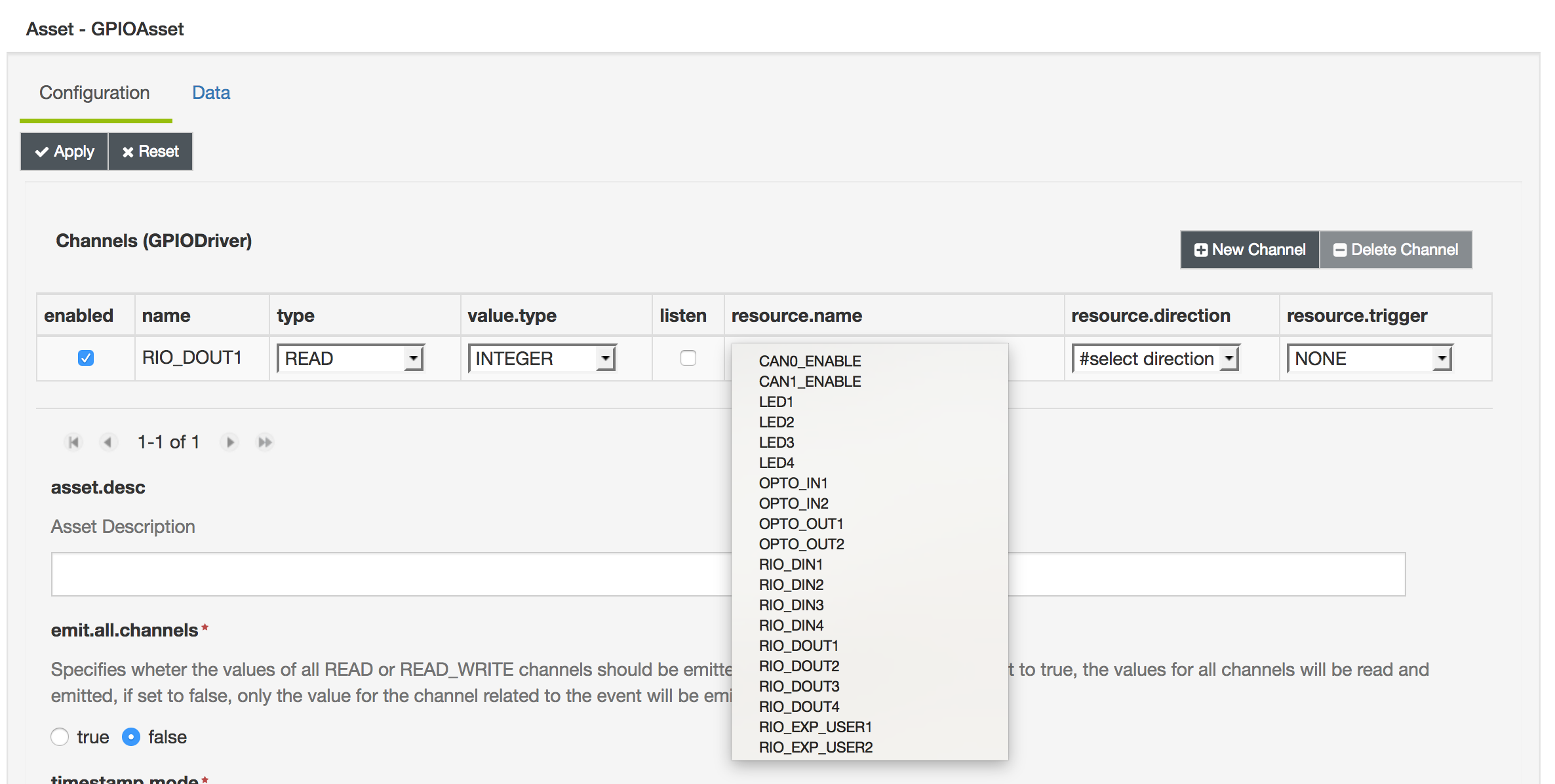

Once the ReliaIO Driver is installed on the gateway, the digital IOs can be used with the ESF GPIO Driver. The new ReliaIO GPIOs will be available on the drop-down list of the resource name column when the module is attached to the device.

ReliaIODIO

The Digital IO provided by the Driver are listed below. Note that their names are made with the pin names (printed in to the enclosure) with the RIO_ prefix.

  • Digital Output
    • RIO_DOUT1
    • RIO_DOUT2
    • RIO_DOUT3
    • RIO_DOUT4
  • Leds
    • RIO_EXP_USER1
    • RIO_EXP_USER2
  • Digital Input
    • RIO_DIN1
    • RIO_DIN2
    • RIO_DIN3
    • RIO_DIN4

Attention

The ReliaIO 10-12 does not support unsolicited inputs. So, selecting the listen button has no effect.
