Linux user manager

The Linux User Manager service allows ESF to manage a Linux user associated with an ESF identity. The associated Linux user has the same name as the ESF identity. When a new ESF identity is created, a Linux user with the same name is automatically created in the system.

It supports the following operations:

• Creating a new associated Linux user
• Deleting an existing associated Linux user
• Managing password and key authentication for the associated Linux user

This component will create the home directory for the associated user as part of the user creation process and it will delete it when the user is removed.

Required permissions

Linux user management is performed by calling the useradd, userdel, passwd and chpasswd commands. The privileges required to perform such operations are acquired using sudo.

ESF installer will create a sudoers configuration file in the /etc/sudoers.d directory that allows the esfd user to run the required commands.

Configuration

The configuration of a Linux user can be customized by using the ESF WebUI or uploading a snapshot file.

Snapshot Configuration

This service will store the Linux user related configuration through the UserAdmin service, using the properties and credential of the UserAdmin User associated with an ESF identity. More information on how ESF identities are stored in the UserAdmin service are available in the ESF documentation.

As explained in ESF documentation, UserAdmin state is persisted in ESF snapshot as part of the configuration of the org.eclipse.kura.internal.useradmin.store.RoleRepositoryStoreImpl component.

Uploading a snapshot with a suitable org.eclipse.kura.internal.useradmin.store.RoleRepositoryStoreImpl configuration can be used to apply changes to Linux user configuration through Everyware Cloud, for example as part of device provisioning and/or using configuration update jobs. An example of snapshot configuration can be found in the Example section.

In order to reduce the number of modifications to the filesystem, the actual update to Linux user configuration will be performed with a delay of a few seconds after UserAdmin state is modified.

WebUI configuration

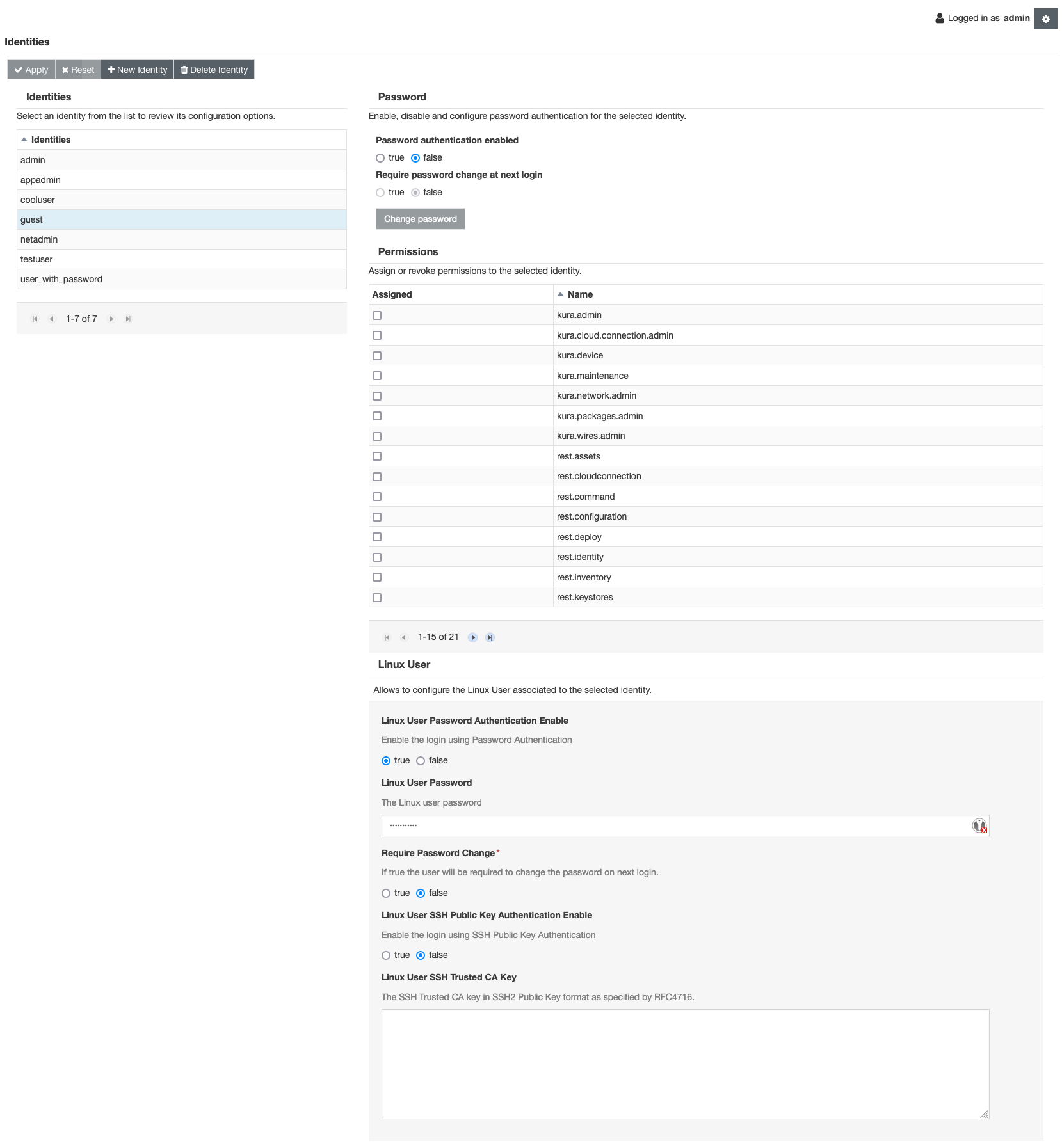

A user can manage ESF identities and associated Linux users through the web UI, as shown in the picture below.

After selecting the Identities tab, the user can create a new identity or configure an exiting one, as explained in the ESF documentation. The Linux user can be configured with the properties at the bottom of the Identity page. The meaning of the properties are presented in the properties section.

Also in this case, the actual update to Linux user configuration will be performed with a delay of a few seconds after the state is submitted, to reduce the number of modifications to the filesystem.

Requirements on identity name

The service will only process UserAdmin Users that are associated with an ESF identity (the ones whose name is in the kura.user.${suffix} form, the name of the Linux user will be ${suffix}).

In addition to the restrictions that apply to Kura identity names (see Authentication and Authorization section of ESF documentation), the identity name must be suitable to be used as a Unix user name as well, in particular all of the following conditions must hold:

• The identity name must only contain characters from the following character set:

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z a b c d e f g h i j k l m n o p q r s t u v w x y z . _ -

• The identity must not start with the - character.

• The identity name must be at most 32 characters long.

If any of these conditions do not hold, the associated Linux user will not be managed by ESF and the configuration will not be shown in the Web UI.

UserAdmin Properties and Credentials

This section describes the UserAdmin properties and credentials that are processed by the Linux User Manager service. The corresponding properties shown in the ESF Web UI are in the brackets.

Properties

• linux.user.password.auth.enable (Linux User Password Authentication Enable)

Enables or disables the password authentication. A new password can be set by specifying the linux.user.password credential. If the linux.user.password credential is not set, no change will be applied to the password currently configured on the system.

• linux.user.require.password.change (Require Password Change)

If this property is set to true, the user will be forced to change its password at next login, this is implemented by expiring the current user password. The linux.user.require.password.change property will be deleted after it has been processed.

Please note that setting this property to false will not have any effect if the user password is already expired. This can be undone only by setting a new user password.

• linux.user.ssh.key.auth.enable (Linux User SSH Public Key Authentication Enable)

Enables or disables the SSH public key authentication. The key has to be set by specifying the linux.user.ssh.ca.key property. OpenSSH will allow login using Public Key Authentication. This will change the SSH daemon configuration presented in SSHService, adding the required properties to enable the SSH login with the specific Linux user. These options should not be changed manually since the SSH Service will automatically recover the previous configuration.

• linux.user.ssh.ca.key (Linux User SSH Trusted CA Key)

When the linux.user.ssh.key.auth.enable option is enabled, this field contains the SSH public key to be installed in the system to enable SSH login. The key has to be in SSH2 Public Key format as specified by RFC4716. E.g:

---- BEGIN SSH2 PUBLIC KEY ----
Comment: "comment"
key in base 64 format
...
...
...
---- END SSH2 PUBLIC KEY ----

Credentials

• linux.user.password (Linux User Password)

Specifies the current Linux user password hash, in the form produced by the crypt function.

The password hash can be produced from the plaintext password using the mkpasswd command, provided for example by the whois package on Debian distributions, see the corresponding man page.

The following command line computes the hash of the password provided on stdin using the SHA512 algorithm:

mkpasswd -m sha512crypt -s

The linux.user.password credential will be deleted after it has been processed.

Example

The following example shows a configuration snippet that will cause the creation of an user named testuser with a password set and with password change required at next login. The SSH key login is enabled as well.

<?xml version="1.0" encoding="UTF-8"?>
<esf:configurations xmlns:esf="http://eurotech.com/esf/2.0" xmlns:ocd="http://www.osgi.org/xmlns/metatype/v1.2.0">
...
  <esf:configuration pid="org.eclipse.kura.internal.useradmin.store.RoleRepositoryStoreImpl">
    <esf:properties>
        ...
        <esf:property array="false" encrypted="false" name="users.config" type="String">
           <esf:value>
           [
           ...
           {
            "name":"kura.user.testuser",
            "properties":{
                "linux.user.password.auth.enable":"true",
                "linux.user.require.password.change":"true",
                "linux.user.ssh.key.auth.enable":"true",
                "linux.user.ssh.ca.key":"...SSH Trusted CA Key..."
                },
            "credentials":{
                "linux.user.password":"...password hash..."
                }
            }
            ...
            ]
           </esf:value>
        </esf:property>
        ...
    </esf:properties>
  </esf:configuration>
...
</esf:configurations>
