ReliaGATE 15A-14 GreenEdge
Document Revision History
| Revision | Date | Notes |
|---|---|---|
| 1.0 | 05/22/2025 | First issue |
Applicable operating systems for this guide
To configure the ReliaGATE 15A-14 GreenEdge you need any PC with an operating system that features a modern web browser (Chrome recommended) and a SSH client to perform troubleshooting (i.e. Putty for Windows OS or ssh command line on Linux Shell or Windows Powershell)
Overview

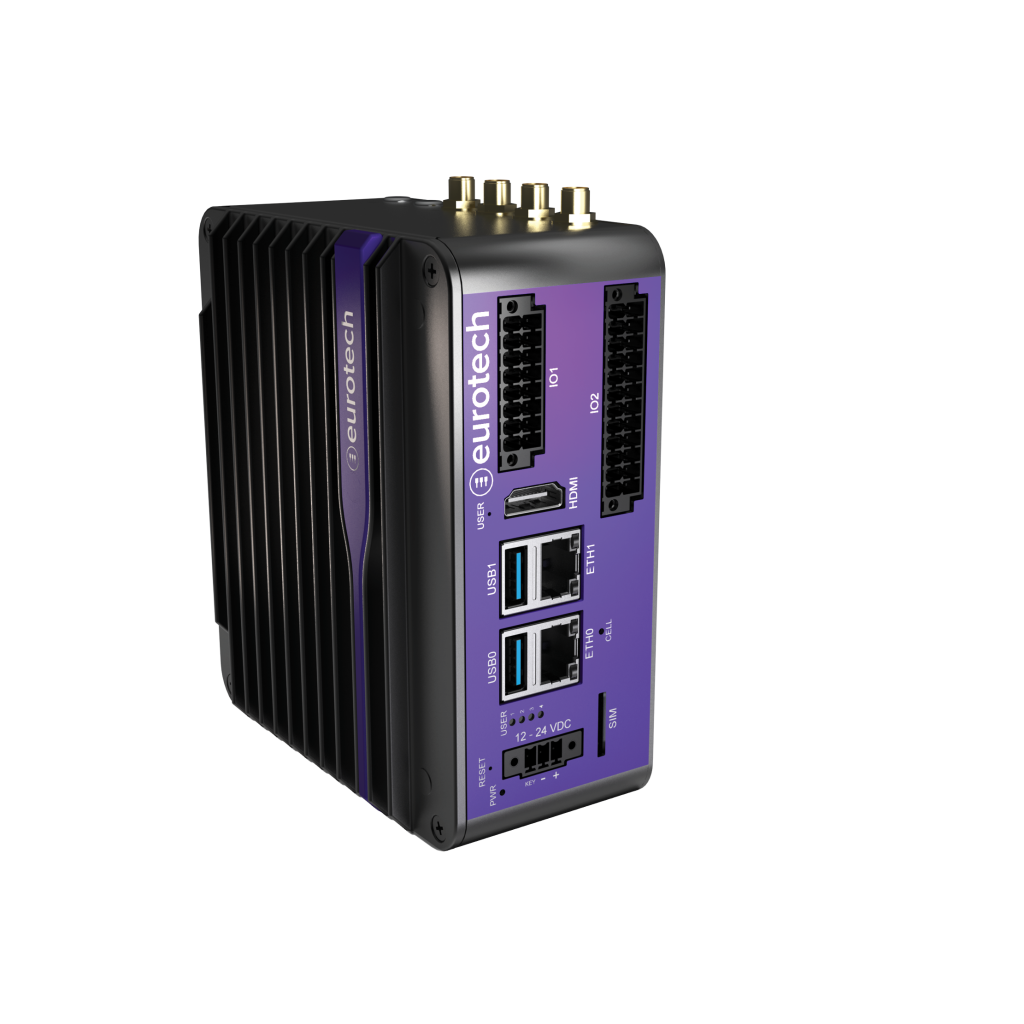

The ReliaGATE 15A-14 GreenEdge is purpose-built for industrial environments with its powerful processing ARM Quad-Core CPU and the ability to seamlessly connect to global networks and 5G Ready
The ReliaGATE 15A-14 GreenEdge supports internal modularity, to conveniently enable deep personalization options. Drawing feature sets from a library of standard modules, it is possible to add as many extra capabilities as needed; examples of modules include a LoRa Concentrator, a LoRa Node, Digital and Analog I/O expansions, extra Ethernet ports (SFP, RJ-45, SPE), a RedCap 5G cellular module, a precision GNSS module, and much more. For customers that require even more specific capabilities, Eurotech offers customization services that can meet any demand.
The ReliaGATE 15A-14 GreenEdge takes a novel approach at helping developers, devops and Infosec Officers in creating, securing, and administrating projects and fleets of devices throughout the entire lifecycle:
- Hardware developers can leverage on a platform that is feature rich, with a wide range of radio and wired interfaces, deeply certified and fully hardened against physical cyber-attacks. An additional benefits is the internal modularity of the product, which enables a high degree of configurations that can be created by combining a library of standard and custom modules at a fraction of the cost and time usually needed for a custom design.
- Application developers can accelerate dramatically the creation of their applications by leveraging the APIs and services provided by Everyware Software Framework (ESF), Eurotech’s Java/OSGi middleware for IoT Edge Gateways. ESF supports ready-to-use field protocols (including Modbus, OPC-UA, S7), MQTT connectivity, and web-based visual data flow programming.
- Developers of containerized solutions can leverage the native Docker support.
- CISOs find the best-in-class Cybersecurity: a secure platform that has been certified to ISASecure/IEC 62443-4-2 SL2 and PSA Level 1 with an always-on physical antitampering monitor/logger that is active even when the system is removed from power. Eurotech cybersecurity services provide updates that are timely delivered and easily applied to ensure constant protection throughout the product’s lifecycle.
- Cloud developers benefit from native connectors to Eurotech Everyware Cloud, AWS and other third-party Cloud services.
- Devops can speed up and simplify most tasks thanks to advanced diagnostics, Zero Touch Provisioning, full remote device access and management.
With Everyware GreenEdge SaaS subscription, you will receive these unique benefits:
- Credential management service with zero-touch provisioning: onboard and provision your device fleet with a simple and secure process. It takes few minutes to get your first device connected to AWS IoT
- Streamlined device management with Eurotech Everyware Cloud (EC): monitor, supervision, upgrade devices, ensuring uninterrupted operations, minimal downtime, and integration with your enterprise systems
- Eurotech Everyware Software Framework (ESF) + ESF Industrial pack: an extensive set of industrial protocols to accelerate your integration and connect to your equipment: Modbus, OPC-UA, S7, FANUC, ETherNet/IP, TwinCAT, MQTT, BLE, and more to come.
- AWS IoT Greengrass v2 preinstalled: automatically provision your thing and start sending data in minutes.
- Software updates: receive GreenEdge software updates and security fixes to keep your system up-to-date and protected from vulnerabilities.
- Unified billing: the contract and the billing is managed through aws.
- Extensive documentation and tutorials to support your growth: build your Proof of Value by following simple tutorials and grow your application with cookbook recipes for specific use cases. Combine Southbound connectivity configurations with edge-processing recipes and accelerate your time to market.
Everyware Software Framework (ESF), a commercial, enterprise-ready edition of Eclipse Kura, the open source Java/OSGi middleware for IoT Edge Gateways. Distributed and supported by Eurotech, ESF supports ready-to-use field protocols (including Modbus, OPC-UA, S7), MQTT connectivity, web-based visual data flow programming and deep configuration. ESF is also integrated with Everyware Cloud (EC) SaaS, Eurotech IoT Integration Platform, enabling advanced diagnostics, zero-touch provisioning, and full remote device access and management.
Hardware Description
Datasheet
Standard Kit Contents
Depending on the order code, you will receive the ReliaGATE 15A-14 GreenEdge ready to be powered on with no additional hardware. By ordering a DevKit with GreenEdge, you may also order a Power Supply for your region, and the required accessories to start operating with your device.
Visit the product page for info on ordering codes.
User provided items
A PC (Windows, Linux or Mac OS) with an Ethernet port and an Ethernet cable or, where applicable, Wi-Fi(TM) to connect to the device.
3rd Party purchasable items
If not included in the DevKit, an AC-DC Power adapter, 24V, 24W is required.
Example items:
Set up Your Development Environment
Operating System
Your ReliaGATE 15A-14 GreenEdge runs Eurotech Everyware Linux, an optimized version of Linux OS specifically aimed at supporting industrial environment.
Tools Installation
The ReliaGATE 15A-14 is distributed with the latest version of ESF and GreenEdge already installed and ready to start.
In order to develop and deploy applications on ESF, you can follow the dedicated guides here.
If you need to build your native applications on this target hardware, please contact us to receive the latest toolchain.
If you need to build your containerized applications on this target hardware, please check the container orchestration guide
Additional References
Detailed documentation on the features provided by the available services running on the ReliaGATE 15A-14 can be found in the ESF official documentation, here.
Set up Your Hardware

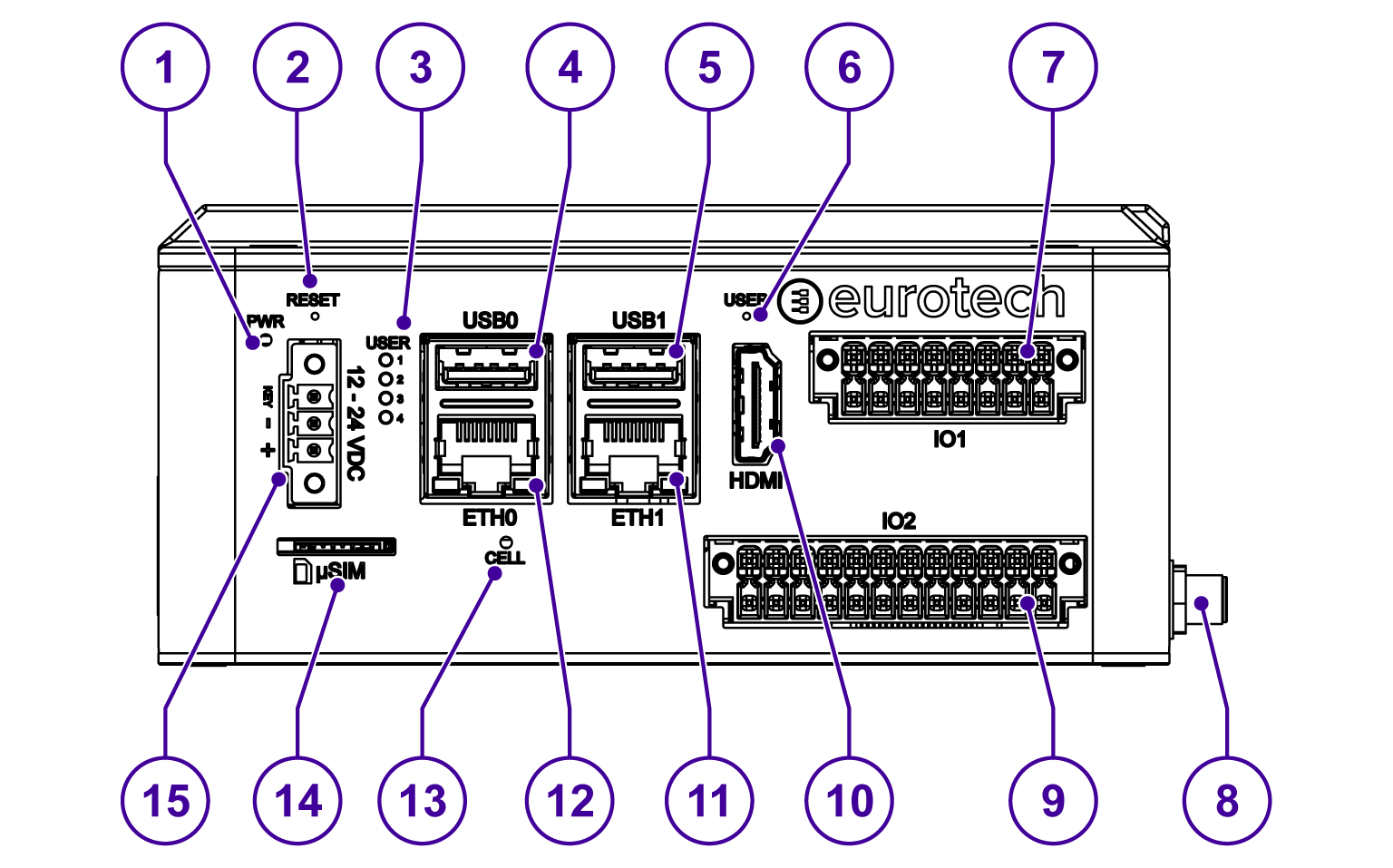

Front Side Overview
| Ref | Description |
|---|---|
| 1 | Power LED |
| 2 | Reset Push-button |
| 3 | User LEDs |
| 4 | USB0 Connector |
| 5 | USB1 Connector |
| 6 | User-programmable Push-button |
| 7 | IO1 Connector (IO1-T01) |
| 8 | Antenna Connector (according to product variants) |
| 9 | IO02 Connector (IO2-T02) |
| 10 | HDMI Connector |
| 11 | ETH1 Connector with Status LEDs (integrated in the connector). Status LEDs meaning:
|
| 12 | ETH0 Connector with Status LEDs (integrated in the connector). Status LEDs meaning:
|
| 13 | Internal Cellular Modem Activity |
| 14 | MicroSIM card holder |
| 15 | Power IN Connector |

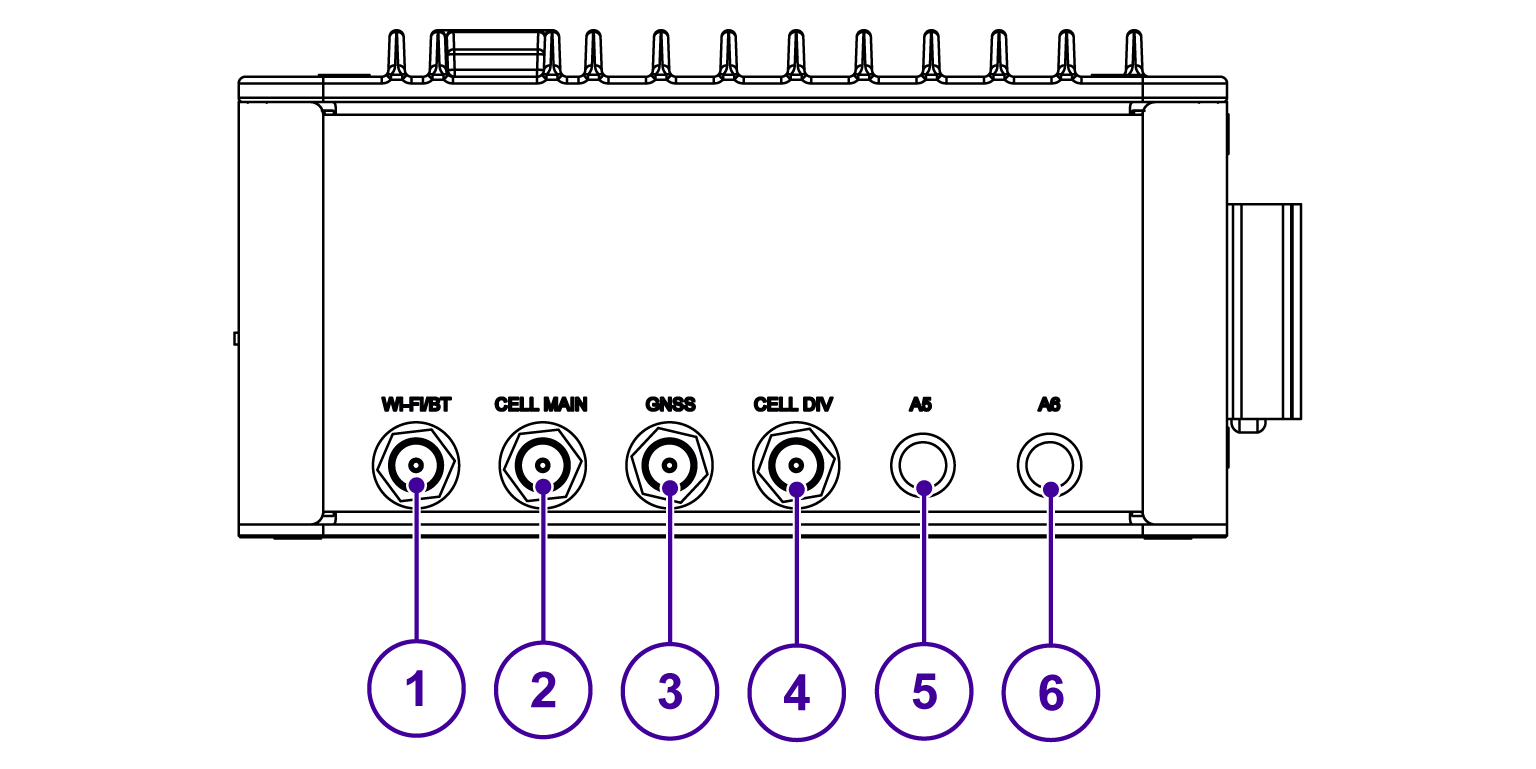

Antenna connector Side Overview
| Ref | Description |
|---|---|
| 1 | Wi-Fi / BT Antenna Connector (RP-SMA) |
| 2 | Main LTE Cellular Antenna Connector (SMA) |
| 3 | GNSS Antenna Connector (SMA) |
| 4 | Diversity LTE Cellular Antenna Connector (SMA) |
| 5 | Reserved for future implementation |
| 6 | Reserved for future implementation |
Setup Your AWS Account
Refer to the online AWS documentation at Set up your AWS Account. Follow the steps outlined in the sections below to create your account and a user and get started:
Pay special attention to the Notes.
Install the AWS CLI or use the CloudShell
To install the AWS CLI on your host machine, refer to the instructions at Installing the AWS CLI v2. Installing the CLI is needed to complete the instructions in this guide.
Once you have installed AWS CLI, configure it as per the instructions in this online guide. Set the appropriate values for Access key ID, Secret access key, and AWS Region. You can set Output format to "json" if you prefer.
Alternatively, you can use the AWS Cloudshell to send the same AWS CLI commands directly from your browser.
Subscribe to Eurotech Everyware GreenEdge on AWS marketplace
After purchasing your Eurotech GreenEdge device, you need to subscribe to the AWS Marketplace offering:
Please follow the steps on the Eurotech Everyware GreenEdge page.
For further information please check Eurotech website: Everyware GreenEdge.
User onboarding
Fill in the form with Organization Name, Organization Unit, your Full Name, your organization email, and address
Select the EST (Enrollment over Secure Transport) endpoint. As of now, the only available endpoint is the default one, provided by Eurotech.
Provide your AWS IoT data plane endpoint: use the AWS CLI aws iot describe-endpoint --endpoint-type iot:data-ATS
Provide the AWS IoT Credential Endpoint: use the AWS CLI aws iot describe-endpoint --endpoint-type iot:CredentialProvider
Select the AWS region you want your device(s) to be connected to.
Create Resources in AWS IoT
After subscribing to GreenEdge you will receive an email containing a link to an AWS CloudFormation script, which will configure the Certificate Authority on your AWS IoT endpoint (thus enabling Zero Touch Provisioning), and will create all the needed resources to run a JITP for AWS IoT Greengrass core devices on your account.
Device power-up and connect
Please refer to Eurotech Quick Start Guide for ReliaGATE 15A-14, which covers all the steps from unboxing, power up, network setup, and zero-touch provisioning to Everyware Cloud and AWS IoT.
After completing step 4 in the Eurotech Quick Start Guide for ReliaGATE 15A-14, please come back here to build the demo application.
Create a Hello World Component
In Greengrass v2, components can be created on the edge device and uploaded to the cloud, or vice versa.
Create the Component on Your Edge Device
Follow the instructions online under the section To create a Hello World component to create, deploy, test, update and manage a simple component on your device.
Upload the Hello World Component
Follow the instructions online at Upload your component to upload your component to the cloud, where it can be deployed to other devices as needed.
Debugging and Troubleshooting
Please check the Eurotech Quick Start Guide for ReliaGATE 15A-14, specifically sections "5 Manage" on how to access the device locally and remotely, and "Troubleshooting" to find a solution to your issues.
Use these links for detailed information on log management and debugging.
Depending on the order code used for your Eurotech device, the system might already be set up for production environments. Refer to the ESF Security introduction to know more about framework execution modalities.
For any issue you might face when working with ESF, feel free to contact the awesome Eclipse Kura community. Chances are the issue you are facing has already been solved!
For detailed documentation, browse the ESF documentation.
If you need support for IoT Greengrass, here it's a link to the FAQs.
And finally, should you need even more support, feel free to open a ticket on our ticketing system.
